I Bar Sealer Wire Replacement Demo

I bar sealers use a round wire sealing element that will burn out over time. How often should they last before burning out? That depends on the quality of sealer being used. Better sealers use better materials which last longer.

The instructions below with video will show the basic steps for changing I bar sealing wires.

Needed Tools: Phillips Screwdriver, Needle Nose Pliers, Replacement Parts

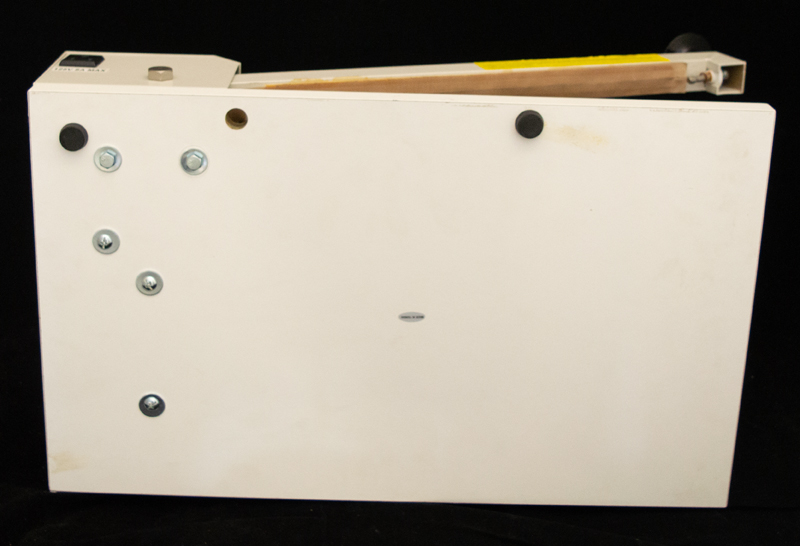

Turn the machine onto its side.

Remove Teflon Tape over the sealing wire.

Remove Teflon Tape

Use a Philips Head Screwdriver to remove the wire set screw.

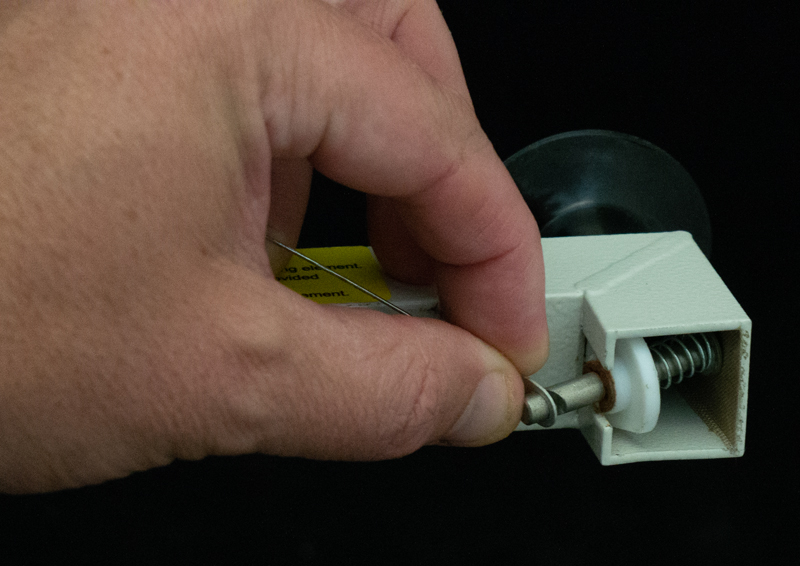

Unhook the opposite end of the old wire.

Unhook the sealing wire

Once the wire is removed, replace the tape under the wire.

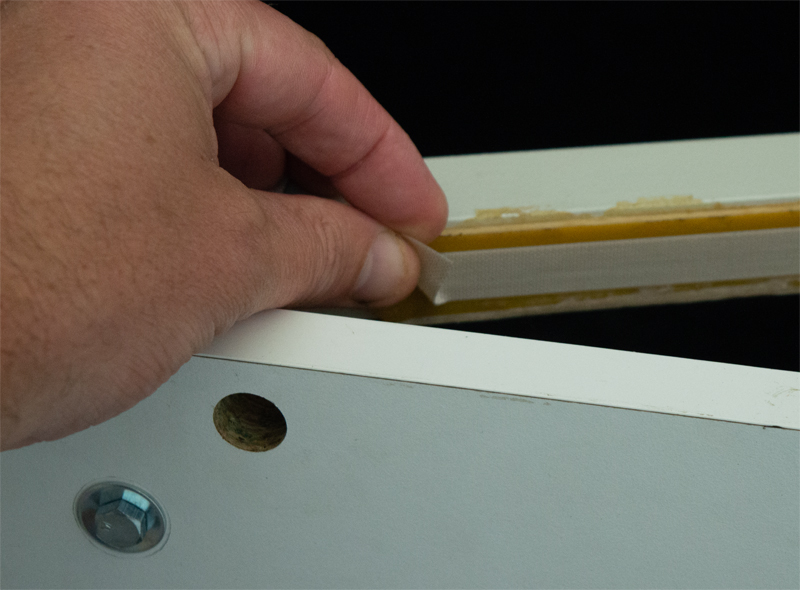

Removing Bottom Teflon Tape

With the new wire, hook the eyelet hole into the machine.

Hooked Wire replacement

Use the needle nose pliers to pull tension when screwing in the set screw.

Tighten Set Screw

After the set screw is tight, cover the wire with replacement Teflon tape.


See the video below for a step-by-step wire replacement demo.
